Data grouping and gridding for LEO satellite data

import datetime
import matplotlib.pyplot as plt
import numpy as np
import pathlib

import geospacelab.visualization.mpl.dashboards as dashboards

def simple_gridding_example():
    # Initialize the start and end datetime for the data to be gridded
    dt_fr = datetime.datetime(2024, 5, 10, 0, 0, 0)
    dt_to = datetime.datetime(2024, 5, 14, 0, 0, 0)
    sat_id = 'A'
    # Create a Dashboard object for visualizing the gridded data
    db = dashboards.TSDashboard(
        dt_fr = dt_fr,
        dt_to = dt_to,
        figure_config = {
            'figsize': (10, 8),
        }
    )
    ds_pod = db.dock(
        datasource_contents=['esa_eo', 'swarm', 'l2daily', 'dns_pod'],
        sat_id=sat_id,
        add_APEX=True, add_AACGM=True,
    )

    ds_sector_ASC = ds_pod.gridding(
        # Variable names to be gridded,
        # which should be a subset of the variables in the original dataset.
        # The gridded variables will be renamed with a prefix "SECTOR_ASC_GRID_"
        # to distinguish them from the original variables,
        # where ASC stands for Ascending.
        var_names_gridding=['rho_n', 'SC_GEO_ALT', 'SC_GEO_LAT', 'SC_GEO_LON'],
        # Sector to be gridded, which can be 'ASC' for ascending phase,
        # 'DSC' for descending phase,
        # 'N' for northern hemisphere,
        # or 'S' for southern hemisphere.
        sector = 'ASC',
        # Coordinate system for the gridding, which can be 'GEO' for geographic coordinates,
        # 'APEX' for apex coordinates, or 'AACGM' for AACGM coordinates.
        sector_cs = 'GEO',
        # Latitude boundary for the sector to be gridded.
        boundary_lat = 90.,
        # Whether to perform along-track interpolation for the gridding.
        along_track_interp=True,
        # Interpolation method for along-track interpolation,
        # which can be 'linear' for linear interpolation.
        along_track_interp_method='linear',
        # Grid resolution along the x axis (time axis).
        # If None, the grid resolution will be automatically determined based on
        # the satellite orbital period.
        x_grid_res=None,
        # Grid resolution along the y axis (latitude axis) in degrees.
        y_grid_res=0.5,
        # Data resolution for the original data to be gridded.
        # If None, the data resolution will be automatically determined
        # based on the original data. For LEO satellite, the resolution is
        # typically around 90 * 60 = 5400 s.
        x_data_res=None,
        # Data resolution for the original data. For the POD data,
        # the resolution is 30 s.
        y_data_res=30,
        # Scale factor for the data resolution along the y axis for better visualization.
        y_data_res_scale=1.5,
        visual='on',
    )
    grid_rho_n_ASC = ds_sector_ASC['SECTOR_ASC_GRID_rho_n']

    panel_layouts = [
        [ds_pod['rho_n']],
        [ds_pod['SC_GEO_LAT']],
        [ds_pod['SC_GEO_LST']],
        [grid_rho_n_ASC],
    ]

    # set axis scale and unit for better visualization, removing exponent for density in the upper-left corner of the panel.
    ds_pod['rho_n'].visual.axis[1].data_scale = 1e12
    ds_pod['rho_n'].visual.axis[1].unit = r'$\cdot$10$^{-12}$ kg$\cdot$m$^{-3}$'

    grid_rho_n_ASC.visual.axis[2].data_scale = 1e12
    grid_rho_n_ASC.visual.axis[2].unit = r'$\cdot$10$^{-12}$ kg$\cdot$m$^{-3}$'
    # Set sector labels and data limits for better visualization
    grid_rho_n_ASC.visual.axis[2].lim = [0, 8]

    db.set_layout(panel_layouts=panel_layouts, left=0.25, right=0.86, top=0.9, bottom=0.06, hspace=0.2)
    db.draw()

    # Post-settings
    # Set panel and axis labels for sector panels
    # For Sector North panel
    ax = db.panels[3]()
    ds_sector_ASC.format_pseudo_lat_axis(ax, 'ASC', inverse=False, add_sperator=True)
    ds_sector_ASC.format_pseudo_lat_label(ax, 'ASC', y_tick_res=45)
    ax.set_ylabel('Ascending\n' + ax.get_ylabel(), labelpad=20)

    lsts_asc = ds_sector_ASC.ascending_nodes['GEO_LST']
    lsts_dsc = ds_sector_ASC.descending_nodes['GEO_LST']
    lst_median_asc = lsts_asc[len(lsts_asc) // 2]
    lst_median_dsc = lsts_dsc[len(lsts_dsc) // 2]

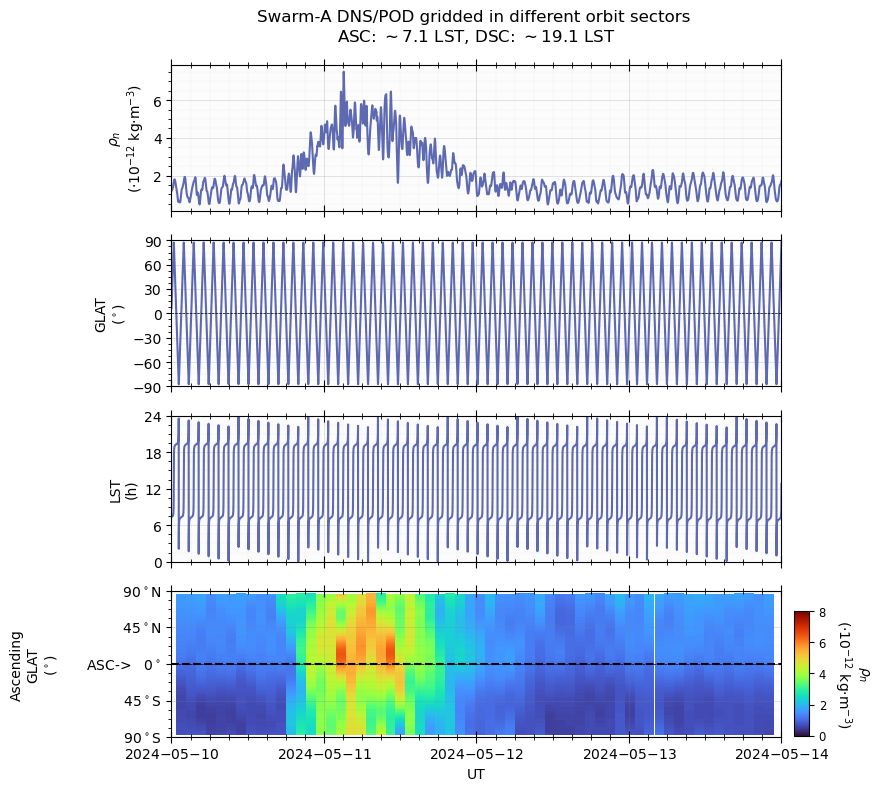

    db.add_title(
        y=1.03,
        title='Swarm-{} DNS/POD gridded in different orbit sectors \n'.format(ds_pod.sat_id) + \
            r'ASC: $\sim${:.1f} LST, DSC: $\sim${:.1f} LST'.format(lst_median_asc, lst_median_dsc),
        fontsize='large', append_time=False)
    db.show()

simple_gridding_example()

def test_gridding_interpolation_DNS_POD():
    """Test Swarm DNS/POD data product

    """
    dt_fr = datetime.datetime(2024, 5, 10, 0, 0)
    dt_to = datetime.datetime(2024, 5, 14, 0, 0)

    db = dashboards.TSDashboard(
        dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (10, 10)},
        )

    ds = db.dock(datasource_contents=['esa_eo', 'swarm', 'l2daily', 'dns_pod'], sat_id='A', add_APEX=True, add_AACGM=True)

    ds_sector_N = ds.gridding(
        var_names_gridding=['rho_n', 'SC_GEO_ALT', 'SC_GEO_LAT', 'SC_GEO_LON'],
        sector = 'N',
        sector_cs = 'GEO',
        boundary_lat = 0.,
        along_track_interp=True, along_track_interp_method='linear',
        x_grid_res=None,
        y_grid_res=0.5,
        x_data_res=None,
        y_data_res=30,
        y_data_res_scale=1.5,
        visual='on',
    )

    ds_sector_S = ds.gridding(
        var_names_gridding=['rho_n', 'SC_GEO_ALT', 'SC_GEO_LAT', 'SC_GEO_LON'],
        sector = 'S',
        sector_cs = 'GEO',
        boundary_lat = 0.,
        along_track_interp=True, along_track_interp_method='linear',
        x_grid_res=None,
        y_grid_res=0.5,
        x_data_res=None,
        y_data_res=30,
        y_data_res_scale=1.5,
        visual='on',
    )

    ds_sector_ASC = ds.gridding(
        var_names_gridding=['rho_n', 'SC_GEO_ALT', 'SC_GEO_LAT', 'SC_GEO_LON'],
        sector = 'ASC',
        sector_cs = 'GEO',
        boundary_lat = 90.,
        along_track_interp=True, along_track_interp_method='linear',
        x_grid_res=None,
        y_grid_res=0.5,
        x_data_res=None,
        y_data_res=30,
        y_data_res_scale=1.5,
        visual='on',
    )

    ds_sector_DSC = ds.gridding(
        var_names_gridding=['rho_n', 'SC_GEO_ALT', 'SC_GEO_LAT', 'SC_GEO_LON'],
        sector = 'DSC',
        sector_cs = 'GEO',
        boundary_lat = 90.,
        along_track_interp=True, along_track_interp_method='linear',
        x_grid_res=None,
        y_grid_res=0.5,
        x_data_res=None,
        y_data_res=30,
        y_data_res_scale=1.5,
        visual='on',
    )

    grid_rho_n_N = ds_sector_N['SECTOR_N_GRID_rho_n']
    grid_rho_n_S = ds_sector_S['SECTOR_S_GRID_rho_n']
    grid_rho_n_ASC = ds_sector_ASC['SECTOR_ASC_GRID_rho_n']
    grid_rho_n_DSC = ds_sector_DSC['SECTOR_DSC_GRID_rho_n']

    panel_layouts = [
        [ds['rho_n']],
        [ds['SC_GEO_LAT']],
        # [ds['SC_GEO_LON']],
        # [ds['SC_GEO_LST']],
        [grid_rho_n_N],
        [grid_rho_n_S],
        [grid_rho_n_ASC],
        [grid_rho_n_DSC],
    ]

    # set axis scale and unit for better visualization, removing exponent for density in the upper-left corner of the panel.
    ds['rho_n'].visual.axis[1].data_scale = 1e12
    ds['rho_n'].visual.axis[1].unit = r'$\cdot$10$^{-12}$ kg$\cdot$m$^{-3}$'

    grid_rho_n_N.visual.axis[2].data_scale = 1e12
    grid_rho_n_N.visual.axis[2].unit = r'$\cdot$10$^{-12}$ kg$\cdot$m$^{-3}$'
    grid_rho_n_S.visual.axis[2].data_scale = 1e12
    grid_rho_n_S.visual.axis[2].unit = r'$\cdot$10$^{-12}$ kg$\cdot$m$^{-3}$'
    grid_rho_n_ASC.visual.axis[2].data_scale = 1e12
    grid_rho_n_ASC.visual.axis[2].unit = r'$\cdot$10$^{-12}$ kg$\cdot$m$^{-3}$'
    grid_rho_n_DSC.visual.axis[2].data_scale = 1e12
    grid_rho_n_DSC.visual.axis[2].unit = r'$\cdot$10$^{-12}$ kg$\cdot$m$^{-3}$'

    # Set sector labels and data limits
    grid_rho_n_N.visual.axis[2].lim = [0, 8]
    grid_rho_n_S.visual.axis[2].lim = [0, 8]
    grid_rho_n_ASC.visual.axis[2].lim = [0, 8]
    grid_rho_n_DSC.visual.axis[2].lim = [0, 8]

    db.set_layout(panel_layouts=panel_layouts, left=0.25, right=0.86, top=0.93, bottom=0.06, hspace=0.3)
    db.draw()

    # Post-settings
    # Set panel and axis labels for sector panels
    # For Sector North panel
    ax = db.panels[2]()
    ds_sector_N.format_pseudo_lat_axis(ax, 'N', inverse=False, add_sperator=True)
    ds_sector_N.format_pseudo_lat_label(ax, 'N', y_tick_res=45)
    ax.set_ylabel('Northern Hemi.\n' + ax.get_ylabel(), labelpad=20)
    ax = db.panels[3]()
    ds_sector_S.format_pseudo_lat_axis(ax, 'S', inverse=False, add_sperator=True)
    ds_sector_S.format_pseudo_lat_label(ax, 'S', y_tick_res=45)
    ax.set_ylabel('Southern Hemi.\n' + ax.get_ylabel(), labelpad=20)
    ax = db.panels[4]()
    ds_sector_ASC.format_pseudo_lat_axis(ax, 'ASC', inverse=False, add_sperator=True)
    ds_sector_ASC.format_pseudo_lat_label(ax, 'ASC', y_tick_res=45)
    ax.set_ylabel('Ascending\n' + ax.get_ylabel(), labelpad=20)
    ax = db.panels[5]()
    ds_sector_DSC.format_pseudo_lat_axis(ax, 'DSC', inverse=True, add_sperator=True)
    ds_sector_DSC.format_pseudo_lat_label(ax, 'DSC', y_tick_res=45)
    ax.set_ylabel('Descending\n' + ax.get_ylabel(), labelpad=20)

    lsts_asc = ds_sector_N.ascending_nodes['GEO_LST']
    lsts_dsc = ds_sector_N.descending_nodes['GEO_LST']
    lst_median_asc = lsts_asc[len(lsts_asc) // 2]
    lst_median_dsc = lsts_dsc[len(lsts_dsc) // 2]

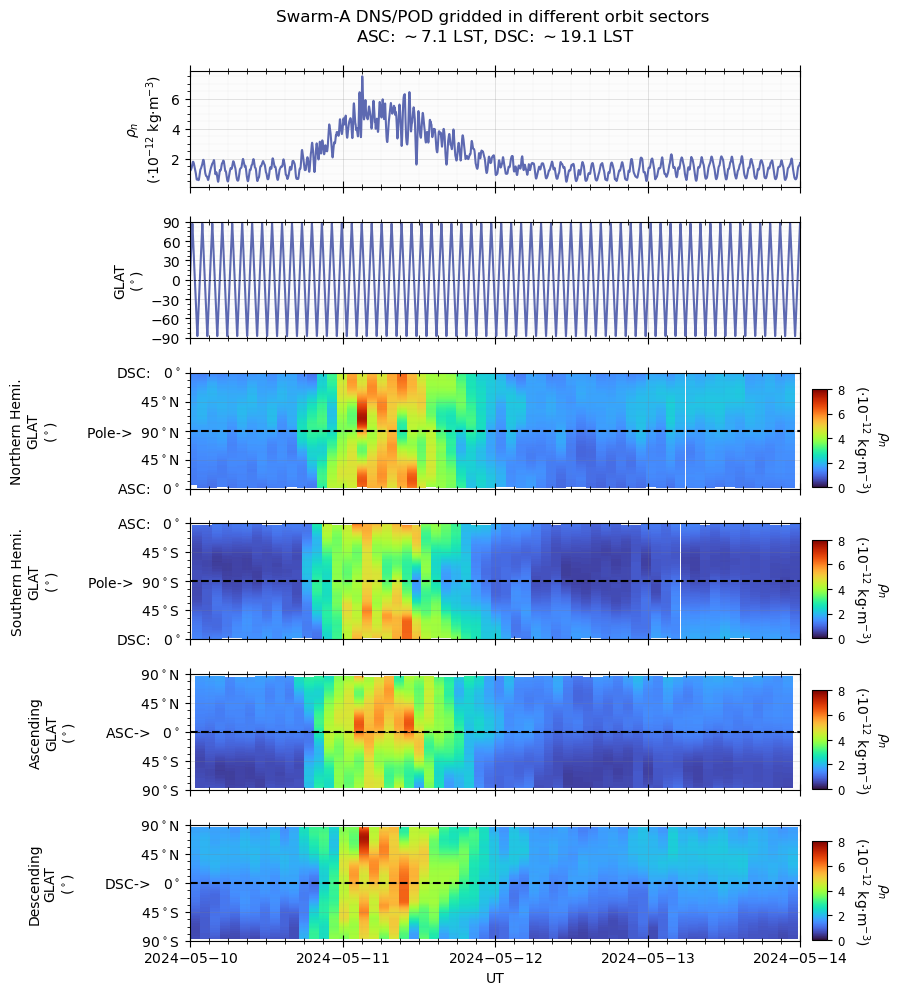

    db.add_title(
        y=1.03,
        title='Swarm-{} DNS/POD gridded in different orbit sectors \n'.format(ds.sat_id) + \
            r'ASC: $\sim${:.1f} LST, DSC: $\sim${:.1f} LST'.format(lst_median_asc, lst_median_dsc),
        fontsize='large', append_time=False)

    return db
db = test_gridding_interpolation_DNS_POD()
db.show()


def test_gridding_binning_FAC_TMS():
    """Test Swarm FAC TMS data product

    """
    dt_fr = datetime.datetime(2024, 5, 10, 0, 0)
    dt_to = datetime.datetime(2024, 5, 14, 0, 0)

    db = dashboards.TSDashboard(
        dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (10, 10)},
    )

    # ds_tms_dual = db.dock(datasource_contents=['esa_eo', 'swarm', 'l2daily', 'fac_tms_dual'], add_APEX=True,)

    ds_tms = db.dock(datasource_contents=['esa_eo', 'swarm', 'l2daily', 'fac_tms'], sat_id='A', add_APEX=True,)

    # Grid the data in the Northern hemispheric sector
    # with geographic coordinates, using binning method for gridding.
    ds_sector_N = ds_tms.gridding(
        var_names_gridding=['j_FA',],
        sector = 'N',
        sector_cs = 'GEO',
        boundary_lat = 30.,
        along_track_binning=True, along_track_interp=False,
        along_track_binning_method='mean',
        along_track_binning_step=0.5,
        along_track_binning_res=2.5,
        x_grid_res=None,
        y_grid_res=2,
        x_data_res=None,
        y_data_res=1,
        y_data_res_scale=1.5,
        visual='on',
    )
    # Grid the data in the Northern hemispheric sector
    # with APEX coordinates, using the same binning method for gridding.
    ds_sector_N_APEX = ds_tms.gridding(
        var_names_gridding=['j_FA',],
        sector = 'N',
        sector_cs = 'APEX',
        boundary_lat = 30.,
        along_track_binning=True, along_track_interp=False,
        along_track_binning_method='mean',
        along_track_binning_step=0.5,
        along_track_binning_res=2.5,
        x_grid_res=None,
        y_grid_res=2,
        x_data_res=None,
        y_data_res=1,
        y_data_res_scale=1.5,
        visual='on',
    )

    j_FA_N = ds_sector_N['SECTOR_N_GRID_j_FA']
    j_FA_N_APEX = ds_sector_N_APEX['SECTOR_N_GRID_j_FA']

    panel_layouts = [
        [ds_tms['j_FA']],
        [ds_tms['SC_GEO_LAT']],
        [j_FA_N,],
        [j_FA_N_APEX,],
    ]

    j_FA_N.visual.axis[2].lim = [-2, 2]
    j_FA_N_APEX.visual.axis[2].lim = [-2, 2]


    db.set_layout(panel_layouts=panel_layouts, left=0.25, right=0.86, top=0.93, bottom=0.06, hspace=0.2)
    db.draw()

    ax = db.panels[2]()
    ds_sector_N.format_pseudo_lat_axis(ax, 'N', inverse=False, add_sperator=True)
    ds_sector_N.format_pseudo_lat_label(ax, 'N', y_tick_res=45)
    ax.set_ylabel('Northern Hemi.\n' + ax.get_ylabel(), labelpad=20)
    ax = db.panels[3]()
    ds_sector_N_APEX.format_pseudo_lat_axis(ax, 'N', inverse=False, add_sperator=True)
    ds_sector_N_APEX.format_pseudo_lat_label(ax, 'N', y_tick_res=45)
    ax.set_ylabel('Northern Hemi.\n' + ax.get_ylabel(), labelpad=20)

    lsts_asc = ds_sector_N.ascending_nodes['GEO_LST']
    lsts_dsc = ds_sector_N.descending_nodes['GEO_LST']
    lst_median_asc = lsts_asc[len(lsts_asc) // 2]
    lst_median_dsc = lsts_dsc[len(lsts_dsc) // 2]

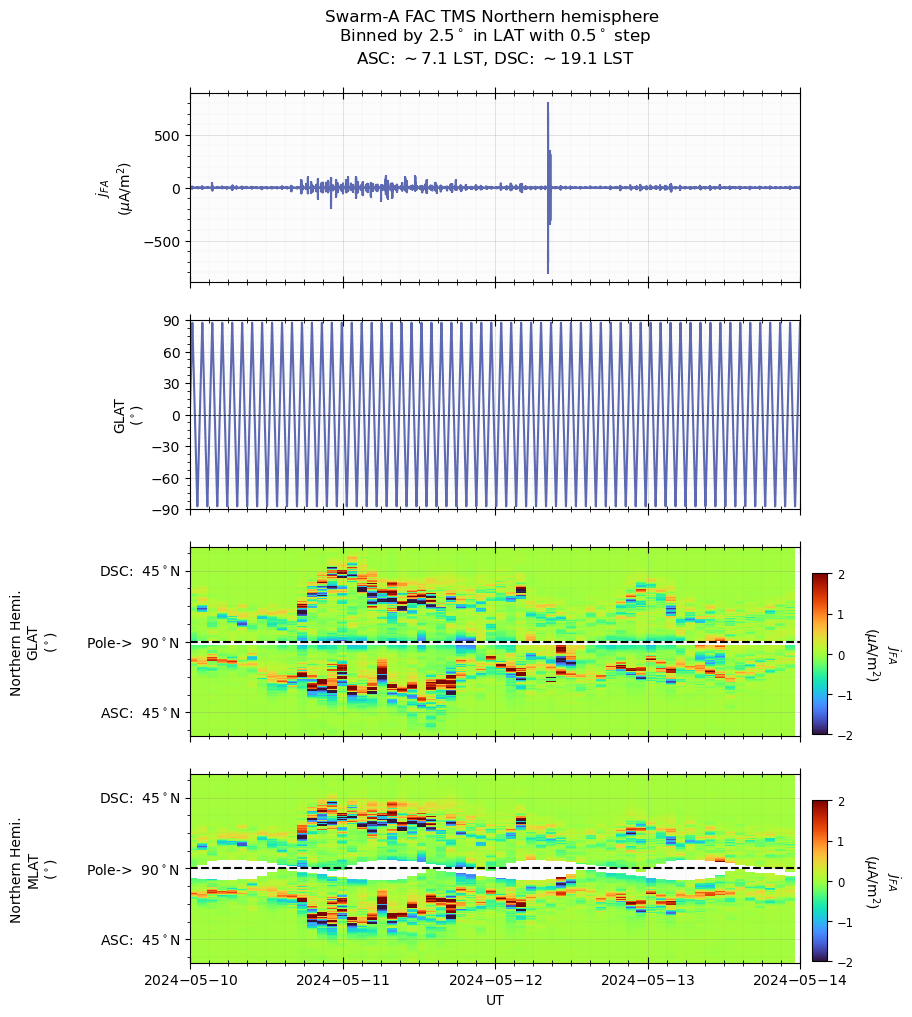

    db.add_title(
        y=1.03,
        title='Swarm-{} FAC TMS Northern hemisphere \n'.format(ds_tms.sat_id) + \
        r'Binned by 2.5$^\circ$ in LAT with 0.5$^\circ$ step' + '\n' + \
        r'ASC: $\sim${:.1f} LST, DSC: $\sim${:.1f} LST'.format(lst_median_asc, lst_median_dsc),
        fontsize='large', append_time=False)

    return db
db = test_gridding_binning_FAC_TMS()
db.show()
