Swarm data visualization

import datetime
import geospacelab.visualization.mpl as gsl_mpl

# Initialize the time range and satellite ID for data retrieval and visualization
dt_fr = datetime.datetime(2016, 3, 15, 2, 34)
dt_to = datetime.datetime(2016, 3, 15, 2, 51)
sat_id = "A"

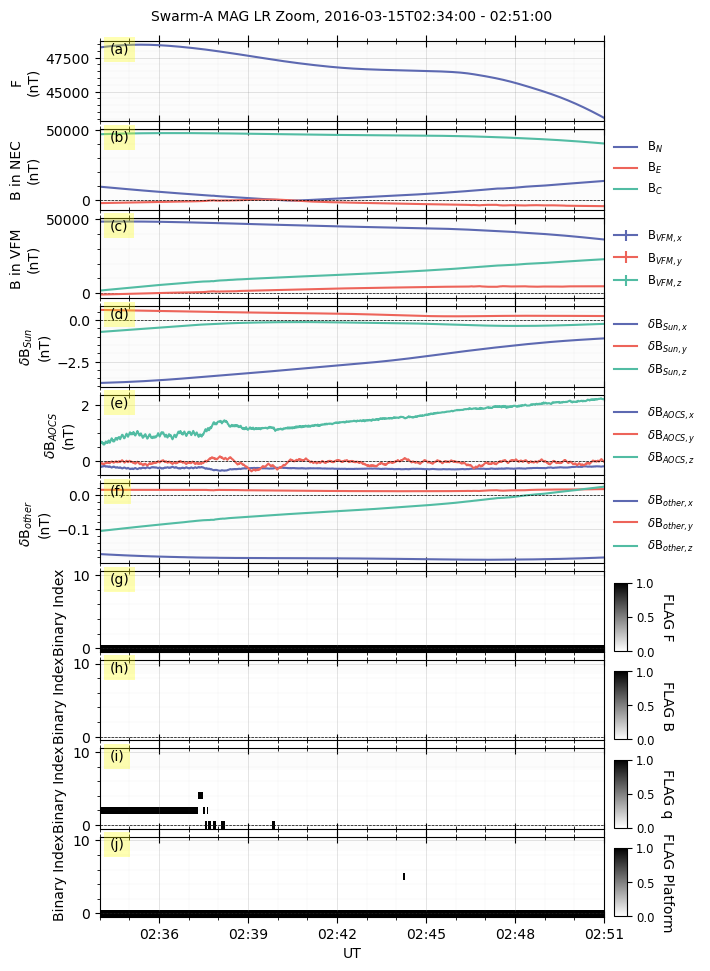

# Create a figure
fig = gsl_mpl.create_figure(figsize=(8, 12))
# Add a time series dashboard to the figure
db = gsl_mpl.dashboards.TSDashboard(figure=fig, dt_fr=dt_fr, dt_to=dt_to)
# Dock a dataset
ds = db.dock(datasource_contents=['esa_eo', 'swarm', 'l1b', 'mag_lr'], sat_id=sat_id, add_APEX=True,)
# Set the panel layouts in the dashboard.
# The layout is a list of lists, where each inner list represents a row of panels in the dashboard.
# Each element in the inner list is a variable from the dataset that will be plotted in that panel.
# This allows for flexible arrangement of multiple plots in a single dashboard.
# To add or remove a panel, simply modify the inner lists accordingly.
# For example, to remove the first panel, simply remove the first inner list: panel_layouts = [ [ds['B_N'], ds['B_E'], ds['B_C']], ... ]
panel_layouts = [
    [ds['F']],
    [ds['B_N'], ds['B_E'], ds['B_C']],
    [ds['B_VFM_x'], ds['B_VFM_y'], ds['B_VFM_z']],
    [ds['dB_Sun_VFM_x'], ds['dB_Sun_VFM_y'], ds['dB_Sun_VFM_z']],
    [ds['dB_AOCS_VFM_x'], ds['dB_AOCS_VFM_y'], ds['dB_AOCS_VFM_z']],
    [ds['dB_other_VFM_x'], ds['dB_other_VFM_y'], ds['dB_other_VFM_z']],
    [ds['FLAG_F_BIN_AUX']],
    [ds['FLAG_B_BIN_AUX']],
    [ds['FLAG_q_BIN_AUX']],
    [ds['FLAG_Platform_BIN_AUX']],
]
db.set_layout(panel_layouts)
# Plotting the data in the dashboard
db.draw()
# Add panel labels to the dashboard
db.add_panel_labels()
# Add a title to the dashboard
db.add_title(y=1.02,title='Swarm-{} MAG LR Zoom'.format(ds.sat_id), fontsize='medium', append_time=True)
# Show the figure/dashboard
db.show()

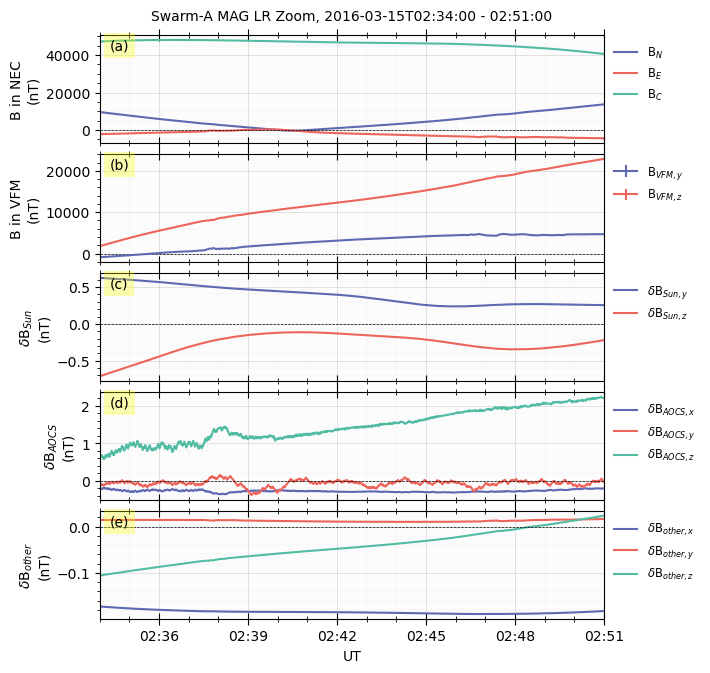

fig = gsl_mpl.create_figure(figsize=(8, 8))
db = gsl_mpl.dashboards.TSDashboard(figure=fig, dt_fr=dt_fr, dt_to=dt_to)
panel_layouts = [
    [ds['B_N'], ds['B_E'], ds['B_C']],
    [ds['B_VFM_y'], ds['B_VFM_z']],
    [ds['dB_Sun_VFM_y'], ds['dB_Sun_VFM_z']],
    [ds['dB_AOCS_VFM_x'], ds['dB_AOCS_VFM_y'], ds['dB_AOCS_VFM_z']],
    [ds['dB_other_VFM_x'], ds['dB_other_VFM_y'], ds['dB_other_VFM_z']],
]
db.set_layout(panel_layouts)
# Plotting the data in the dashboard
db.draw()
# Add panel labels to the dashboard
db.add_panel_labels()
# Add a title to the dashboard
db.add_title(y=1.02,title='Swarm-{} MAG LR Zoom'.format(ds.sat_id), fontsize='medium', append_time=True)
# Show the figure/dashboard
db.show()

# Default kwargs for VirES data loading, which can be overridden when calling the dock method to load data from VirES.
# The measurements, models, and residuals to load can be specified in the kwargs_products dictionary.
# The default settings are for loading all available measurements and models, and no residuals.
# The available measurements and models depend on the specific collection and product being loaded,
# and can be checked in the VirES API documentation or by inspecting the variables in the loaded dataset.
kwargs_products_default = {
        "measurements": [
            'B_VFM', 'B_NEC', 'dB_Sun', 'dB_AOCS', 'dB_other', 'B_error',
            'q_NEC_CRF', 'Att_error',
            'Flags_B', 'Flags_q', 'Flags_Platform', 'Flags_F',
            'ASM_Freq_Dev', 'F', 'F_error', 'dF_Sun', 'dF_AOCS', 'dF_other',
        ],
        "models": [
            'CHAOS-Core',
        ],
        "residuals": True,
    }

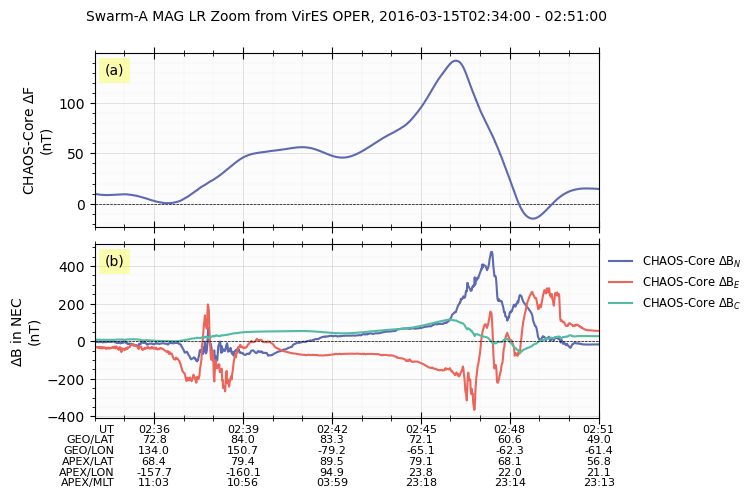

db = gsl_mpl.dashboards.TSDashboard(
    dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (8, 5)},
    timeline_extra_labels=['GEO_LAT', 'GEO_LON', 'APEX_LAT', 'APEX_LON', 'APEX_MLT',]
    )

ds_vires = db.dock(
    datasource_contents=['esa_eo', 'swarm', 'l1b', 'mag_lr'],
    from_VirES=True, from_FAST=False,
    sat_id=sat_id, add_APEX=True,
    kwargs_VirES={"kwargs_products": kwargs_products_default},
)

panel_layouts = [
    [ds_vires['F_res_CHAOS-Core']],
    [ds_vires['B_res_CHAOS-Core_N'], ds_vires['B_res_CHAOS-Core_E'], ds_vires['B_res_CHAOS-Core_C']],
]

db.set_layout(panel_layouts=panel_layouts)
db.draw()
db.add_panel_labels()
db.add_title(title='Swarm-{} MAG LR Zoom from VirES OPER'.format(ds_vires.sat_id), fontsize='medium', append_time=True)
db.show()

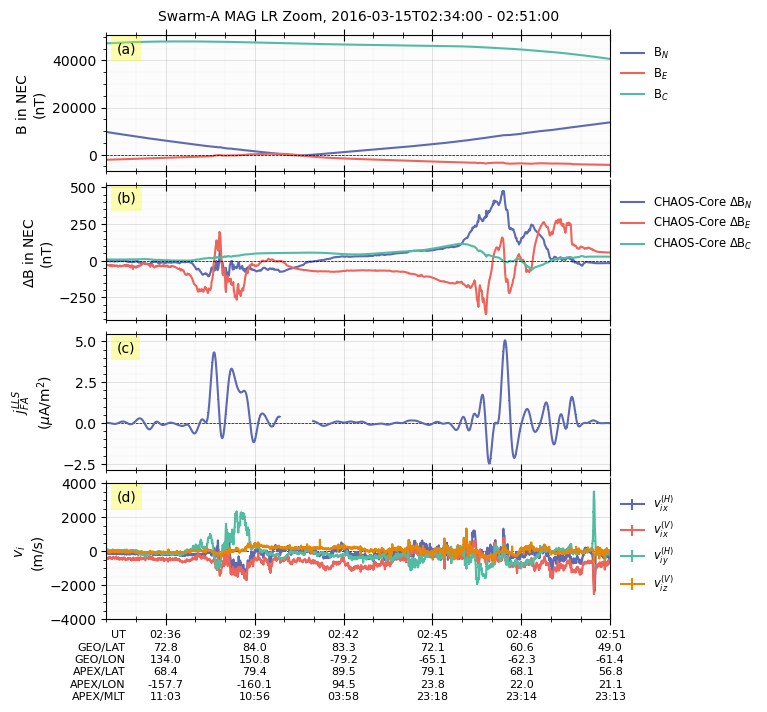

fig = gsl_mpl.create_figure(figsize=(8, 8))
db = gsl_mpl.dashboards.TSDashboard(
    figure=fig, dt_fr=dt_fr, dt_to=dt_to,
    timeline_extra_labels=['GEO_LAT', 'GEO_LON', 'APEX_LAT', 'APEX_LON', 'APEX_MLT',]
    )
ds_mag = db.dock(
    datasource_contents=['esa_eo', 'swarm', 'l1b', 'mag_lr'],
    sat_id=sat_id,
    add_APEX=True,)
ds_vires = db.dock(
    datasource_contents=['esa_eo', 'swarm', 'l1b', 'mag_lr'],
    from_VirES=True, from_FAST=False,
    sat_id=sat_id, add_APEX=True,
    kwargs_VirES={"kwargs_products": kwargs_products_default},
)
ds_FAC = db.dock(
    datasource_contents=['esa_eo', 'swarm', 'l2daily', 'fac_lls_dual'],
    add_APEX=True,) # sat_id is fixed to 'AC' for LLS Dual product

ds_tct02 = db.dock(
    datasource_contents=['esa_eo', 'swarm', 'advanced', 'efi_tct02'],
    sat_id=sat_id, add_APEX=True,
)

panel_layouts = [
    [ds_mag['B_N'], ds_mag['B_E'], ds_mag['B_C']],
    [ds_vires['B_res_CHAOS-Core_N'], ds_vires['B_res_CHAOS-Core_E'], ds_vires['B_res_CHAOS-Core_C']],
    [ds_FAC['j_FA']],
    [ds_tct02['v_i_H_x'], ds_tct02['v_i_V_x'], ds_tct02['v_i_H_y'], ds_tct02['v_i_V_z']],
]
db.set_layout(panel_layouts)
# Plotting the data in the dashboard
db.draw()
# Add panel labels to the dashboard
db.add_panel_labels()
# Add a title to the dashboard
db.add_title(y=1.02,title='Swarm-{} MAG LR Zoom'.format(ds.sat_id), fontsize='medium', append_time=True)
# Show the figure/dashboard
db.show()

# Create a geodashboard object
db = gsl_mpl.geomap.geodashboards.GeoDashboard(dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (5, 5)})
# Set the layout of the geodashboard to have one panel that will display the satellite's trajectory on a map
db.set_layout(1, 1)     # Set the layout to have 1 row and 1 column, meaning there will be one panel in the geodashboard
# Add a polar map panel
time_c = dt_fr + (dt_to - dt_fr) / 2
panel = db.add_polar_map(
        row_ind=0,
        col_ind=0,
        style='mlt-fixed',  # 'glon-fixed', 'lst-fixed', or 'mlt-fixed'
        cs='APEX',
        mlt_c=0.,
        pole='N',   # 'N' for North Pole, 'S' for South Pole
        ut=time_c,  # The time when the satellite is close tot the pole,
                    # used for calculating the magnetic coordinates and plotting the satellite trajectory on the polar map.
        boundary_lat=60., # The latitude of the boundary of the polar map.
        mirror_south=True # Applicable when pole = 'S'
    )
# Add grids and labels to the polar map
panel.overlay_gridlines(lat_label_clock=2.2)
panel.overlay_coastlines()

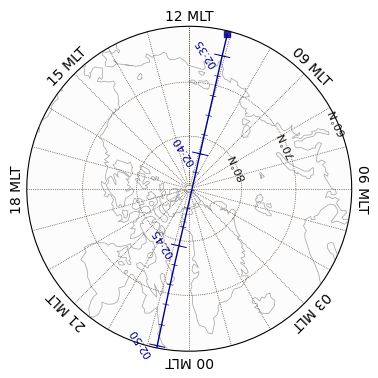

# Show the satellite trajectory on the polar map using the coordinates from the ds_mag dataset
sc_dts = ds_mag['SC_DATETIME'].flatten()
sc_glats = ds_mag['SC_GEO_LAT'].flatten()
sc_glons = ds_mag['SC_GEO_LON'].flatten()
sc_alts = (ds_mag['SC_GEO_r'].flatten() - 1) * 6371.2  # Convert from Earth radii to km
sc_coords = {'lat': sc_glats, 'lon': sc_glons, 'height': sc_alts}

# Overlay the satellite trajectory with ticks
panel.overlay_sc_trajectory(
    sc_ut=sc_dts,
    sc_coords=sc_coords,
    cs='GEO', # Input coordinate system
    color='darkblue',
    time_tick = True,
    time_tick_res=300.,
    time_tick_scale=0.05,
    time_tick_label=True,
    time_tick_label_format="%H:%M",
    time_tick_label_fontsize=8,
    time_tick_label_rotation=45.,
    time_tick_label_offset=0.05,
    time_tick_label_fontweight='normal',
    time_minor_tick=True,
    time_minor_tick_res=60,
    show_start_point=True,
    )

# Create a geodashboard object
db = gsl_mpl.geomap.geodashboards.GeoDashboard(dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (5, 5)})
# Set the layout of the geodashboard to have one panel that will display the satellite's trajectory on a map
db.set_layout(1, 1)     # Set the layout to have 1 row and 1 column, meaning there will be one panel in the geodashboard
# Add a polar map panel
time_c = dt_fr + (dt_to - dt_fr) / 2
panel = db.add_polar_map(
        row_ind=0,
        col_ind=0,
        style='mlt-fixed',  # 'glon-fixed', 'lst-fixed', or 'mlt-fixed'
        cs='APEX',
        mlt_c=0.,
        pole='N',   # 'N' for North Pole, 'S' for South Pole
        ut=time_c,  # The time when the satellite is close tot the pole,
                    # used for calculating the magnetic coordinates and plotting the satellite trajectory on the polar map.
        boundary_lat=60., # The latitude of the boundary of the polar map.
        mirror_south=True # Applicable when pole = 'S'
    )
# Add grids and labels to the polar map
panel.overlay_gridlines(lat_label_clock=2.2)
panel.overlay_coastlines()
# Show the satellite trajectory on the polar map using the coordinates from the ds_mag dataset
sc_dts = ds_FAC['SC_DATETIME'].flatten()
sc_glats = ds_FAC['SC_GEO_LAT'].flatten()
sc_glons = ds_FAC['SC_GEO_LON'].flatten()
sc_alts = (ds_FAC['SC_GEO_r'].flatten() - 1) * 6371.2  # Convert from Earth radii to km
sc_coords = {'lat': sc_glats, 'lon': sc_glons, 'height': sc_alts}

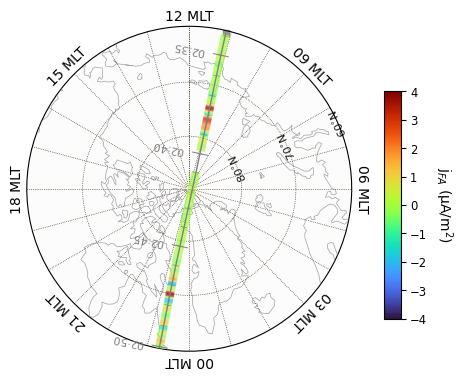

# Get the FAC data from the ds_FAC dataset, which will be used for coloring the satellite trajectory on the polar map.
j_FA = ds_FAC['j_FA'].flatten()
# Overlay the FAC data on the satellite trajectory by passing it as the color argument in the overlay_sc_trajectory method.
icl = panel.overlay_sc_coloured_line(
    j_FA,
    sc_ut=sc_dts,
    sc_coords=sc_coords,
    cs='GEO', # Input coordinate system
    c_map = 'turbo',
    c_lim = [-4, 4],
)
panel.add_colorbar(icl, c_label=r'j$_{FA}$ (µA/m$^2$)',)

# Overlay the satellite trajectory with ticks
panel.overlay_sc_trajectory(
    sc_ut=sc_dts,
    sc_coords=sc_coords,
    cs='GEO', # Input coordinate system
    color='gray',
    time_tick = True,
    time_tick_res=300.,
    time_tick_scale=0.05,
    time_tick_label=True,
    time_tick_label_format="%H:%M",
    time_tick_label_fontsize=8,
    time_tick_label_rotation=90.,
    time_tick_label_offset=0.1,
    time_tick_label_fontweight='normal',
    time_minor_tick=True,
    time_minor_tick_res=60,
    show_start_point=True,
    )

# Create a geodashboard object
db = gsl_mpl.geomap.geodashboards.GeoDashboard(dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (5, 5)})
# Set the layout of the geodashboard to have one panel that will display the satellite's trajectory on a map
db.set_layout(1, 1)     # Set the layout to have 1 row and 1 column, meaning there will be one panel in the geodashboard
# Add a polar map panel
time_c = dt_fr + (dt_to - dt_fr) / 2
panel = db.add_polar_map(
        row_ind=0,
        col_ind=0,
        style='mlt-fixed',  # 'glon-fixed', 'lst-fixed', or 'mlt-fixed'
        cs='APEX',
        mlt_c=0.,
        pole='N',   # 'N' for North Pole, 'S' for South Pole
        ut=time_c,  # The time when the satellite is close tot the pole,
                    # used for calculating the magnetic coordinates and plotting the satellite trajectory on the polar map.
        boundary_lat=60., # The latitude of the boundary of the polar map.
        mirror_south=True # Applicable when pole = 'S'
    )
# Add grids and labels to the polar map
panel.overlay_gridlines(lat_label_clock=2.2)
panel.overlay_coastlines()
# Show the satellite trajectory on the polar map using the coordinates from the ds_mag dataset
sc_dts = ds_tct02['SC_DATETIME'].flatten()
sc_glats = ds_tct02['SC_GEO_LAT'].flatten()
sc_glons = ds_tct02['SC_GEO_LON'].flatten()
sc_alts = (ds_tct02['SC_GEO_r'].flatten() - 1) * 6371.2  # Convert from Earth radii to km
sc_coords = {'lat': sc_glats, 'lon': sc_glons, 'height': sc_alts}

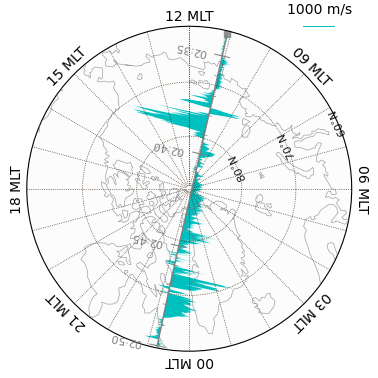

# Get the cross-track ion velocity data from the ds_tct02 dataset, which will be used for coloring the satellite trajectory on the polar map.
v_i_H_y = ds_tct02['v_i_H_y'].flatten()
# Overlay the cross-track ion velocity data on the satellite trajectory by passing it as the color argument in the overlay_sc_trajectory method.
panel.overlay_cross_track_vector(
        vector=-v_i_H_y.flatten(), unit_vector=1000, vector_unit='m/s', alpha=1, color='c', vector_width=1,
        sc_coords=sc_coords, sc_ut=sc_dts, cs='GEO', shading='on', legend_pos_x=0.9, legend_pos_y=1
    )

# Overlay the satellite trajectory with ticks
panel.overlay_sc_trajectory(
    sc_ut=sc_dts,
    sc_coords=sc_coords,
    cs='GEO', # Input coordinate system
    color='gray',
    time_tick = True,
    time_tick_res=300.,
    time_tick_scale=0.05,
    time_tick_label=True,
    time_tick_label_format="%H:%M",
    time_tick_label_fontsize=8,
    time_tick_label_rotation=90.,
    time_tick_label_offset=0.1,
    time_tick_label_fontweight='normal',
    time_minor_tick=True,
    time_minor_tick_res=60,
    show_start_point=True,
    )
