import datetime
import pathlib
import os
import geospacelab.visualization.mpl.dashboards as dashboards
cwd = pathlib.Path(os.path.abspath(''))
file_dir_figure = cwd / 'figures'
file_dir_figure.mkdir(parents=True, exist_ok=True)Overview¶
def test_swarm_EFI_IDM_overview():
"""Test Swarm EFI IDM data product
"""
dt_fr = datetime.datetime(2016, 3, 14, 15, 0)
dt_to = datetime.datetime(2016, 3, 14, 22, 0)
db = dashboards.TSDashboard(
dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (8, 12)},
)
ds = db.dock(datasource_contents=['esa_eo', 'swarm', 'advanced', 'efi_idm'], sat_id='A', add_APEX=True,)
panel_layouts = [
[ds['M_i_eff_model'], ds['M_i_eff']],
[ds['FLAG_M_i_eff_BIN_AUX']],
[ds['v_i_raw'], ds['v_i']],
[ds['FLAG_v_i_BIN_AUX']],
[ds['n_i'],],
[ds['FLAG_n_i_BIN_AUX']],
]
db.set_layout(panel_layouts=panel_layouts)
db.draw()
db.add_title(title='Swarm-{} EFI IDM Overview'.format(ds.sat_id), fontsize='medium', append_time=True)
db.save_figure(file_dir=file_dir_figure, file_name='example_EFI_IDM_Swarm-{}_overview'.format(ds.sat_id), dpi=100, append_time=False)
db.show()
test_swarm_EFI_IDM_overview()

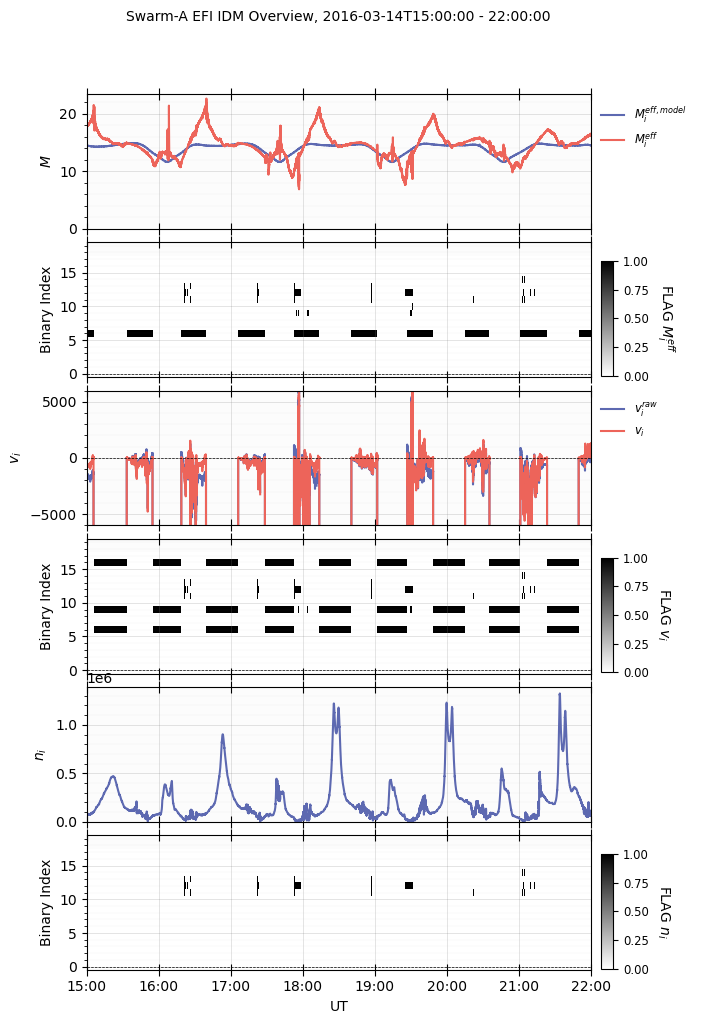

Create a new figure: Figure(800x1200).
Load IGRF coefficients ...
Searching the data product "EFI_IDM" with the version "latest" on the server...
INFO: Indexing the files for the product EFI_IDM of the satellite A ...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Advanced/EFI_IDM/0301/Sat_A/2016/SW_PREL_EFIAIDM_2__20160314T000000_20160314T235959_0301.cdf')] already exists: skip downloading.
/opt/anaconda3/envs/Swarm/lib/python3.12/site-packages/numpy/_core/numeric.py:476: RuntimeWarning: invalid value encountered in cast
multiarray.copyto(res, fill_value, casting='unsafe')
Zoomed-in¶
def test_swarm_EFI_IDM_zoom():
"""Test Swarm EFI IDM data product
"""
dt_fr = datetime.datetime(2016, 3, 14, 20, 15)
dt_to = datetime.datetime(2016, 3, 14, 21, 0)
db = dashboards.TSDashboard(
dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (8, 12)},
timeline_extra_labels=['GEO_LAT', 'GEO_LON', 'APEX_LAT', 'APEX_LON', 'APEX_MLT',] # Not applicable for very scattered data points like AEJ_PBS peaks
)
ds = db.dock(datasource_contents=['esa_eo', 'swarm', 'advanced', 'efi_idm'], sat_id='A', add_APEX=True,)
panel_layouts = [
[ds['M_i_eff_model'], ds['M_i_eff']],
[ds['FLAG_M_i_eff_BIN_AUX']],
[ds['v_i_raw'], ds['v_i']],
[ds['FLAG_v_i_BIN_AUX']],
[ds['n_i'],],
[ds['FLAG_n_i_BIN_AUX']],
]
db.set_layout(panel_layouts=panel_layouts)
db.draw()
db.add_title(title='Swarm-{} EFI IDM Zoom'.format(ds.sat_id), fontsize='medium', append_time=True)
db.save_figure(file_dir=file_dir_figure, file_name='example_EFI_IDM_Swarm-{}_zoom'.format(ds.sat_id), dpi=100, append_time=False)
db.show()

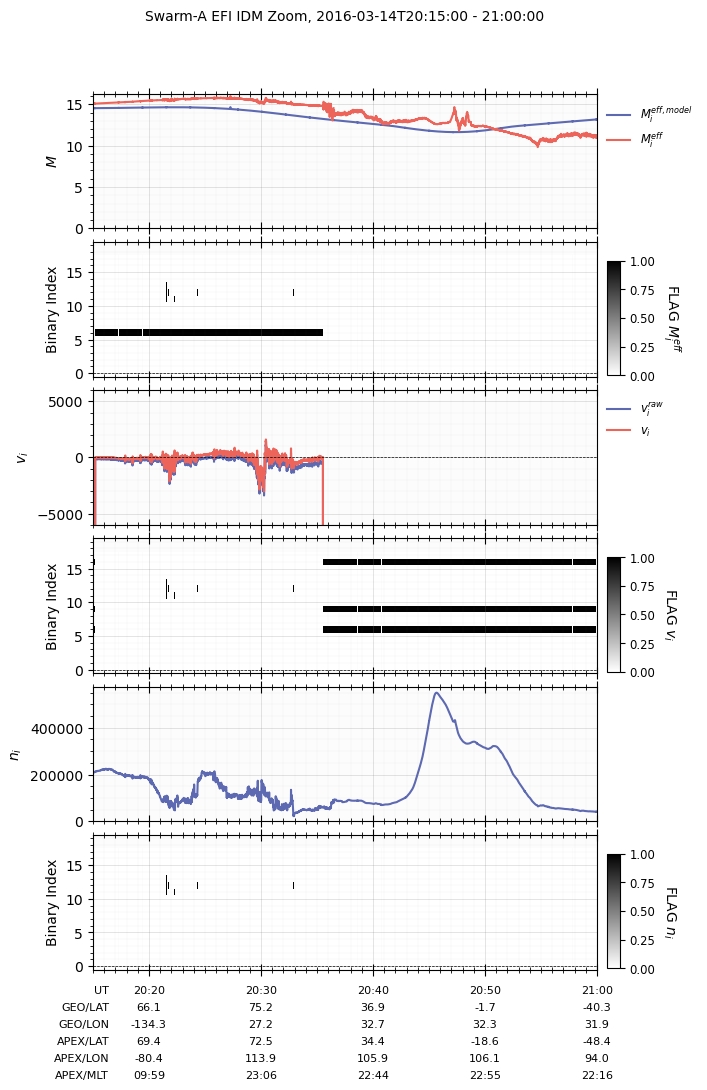

test_swarm_EFI_IDM_zoom() Create a new figure: Figure(800x1200).
Searching the data product "EFI_IDM" with the version "latest" on the server...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Advanced/EFI_IDM/0301/Sat_A/2016/SW_PREL_EFIAIDM_2__20160314T000000_20160314T235959_0301.cdf')] already exists: skip downloading.
