import datetime
import matplotlib.pyplot as plt
import numpy as np
import pathlib
import os
import geospacelab.visualization.mpl.dashboards as dashboards
cwd = pathlib.Path(os.path.abspath(''))
file_dir_figure = cwd / 'figures'
file_dir_figure.mkdir(parents=True, exist_ok=True)Swarm EFI TII TCT 2Hz data¶

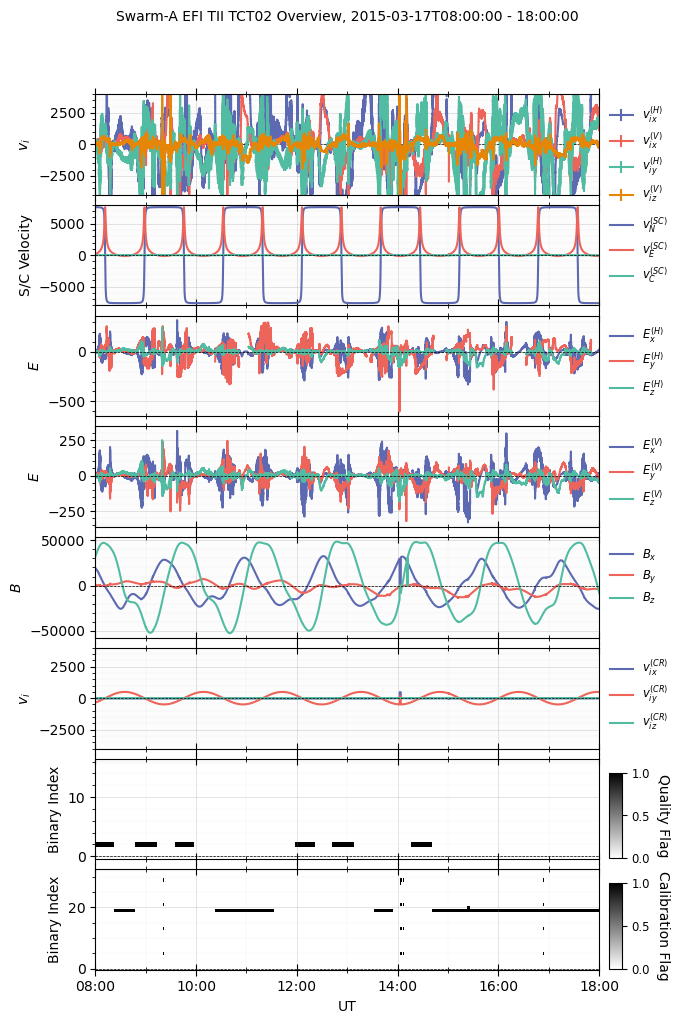

Overview with a long time span¶
def test_swarm_EFI_TII_TCT02_overview():
"""Test Swarm EFI TII TCT02 data product
"""
dt_fr = datetime.datetime(2015, 3, 17, 8, 0)
dt_to = datetime.datetime(2015, 3, 17, 18, 0)
db = dashboards.TSDashboard(
dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (8, 12)},
)
ds = db.dock(datasource_contents=['esa_eo', 'swarm', 'advanced', 'efi_tct02'], sat_id='A', add_APEX=True,)
panel_layouts = [
[ds['v_i_H_x'], ds['v_i_V_x'], ds['v_i_H_y'], ds['v_i_V_z']],
[ds['v_SC_N'], ds['v_SC_E'], ds['v_SC_C']],
[ds['E_H_x'], ds['E_H_y'], ds['E_H_z']],
[ds['E_V_x'], ds['E_V_y'], ds['E_V_z']],
[ds['B_x'], ds['B_y'], ds['B_z']],
[ds['v_i_CR_x'], ds['v_i_CR_y'], ds['v_i_CR_z']],
[ds['QUALITY_FLAG_BIN_AUX'],],
[ds['CALIB_FLAG_BIN_AUX'],],
]
db.set_layout(panel_layouts=panel_layouts)
db.draw()
db.add_title(title='Swarm-{} EFI TII TCT02 Overview'.format(ds.sat_id), fontsize='medium', append_time=True)
db.save_figure(
file_dir=file_dir_figure,
file_name='example_EFI_TII_TCT02_Swarm-{}_overview'.format(ds.sat_id),
dpi=100,
append_time=False)
db.show()
test_swarm_EFI_TII_TCT02_overview()
Create a new figure: Figure(800x1200).
Load IGRF coefficients ...
Searching the data product "EFI_TCT02" with the version "latest" on the server...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Advanced/EFI_TII/TCT02/0401/Sat_A/2015/SW_EXPT_EFIA_TCT02_20150317T000000_20150317T235959_0401.cdf')] already exists: skip downloading.
/opt/anaconda3/envs/Swarm/lib/python3.12/site-packages/numpy/_core/numeric.py:476: RuntimeWarning: invalid value encountered in cast
multiarray.copyto(res, fill_value, casting='unsafe')

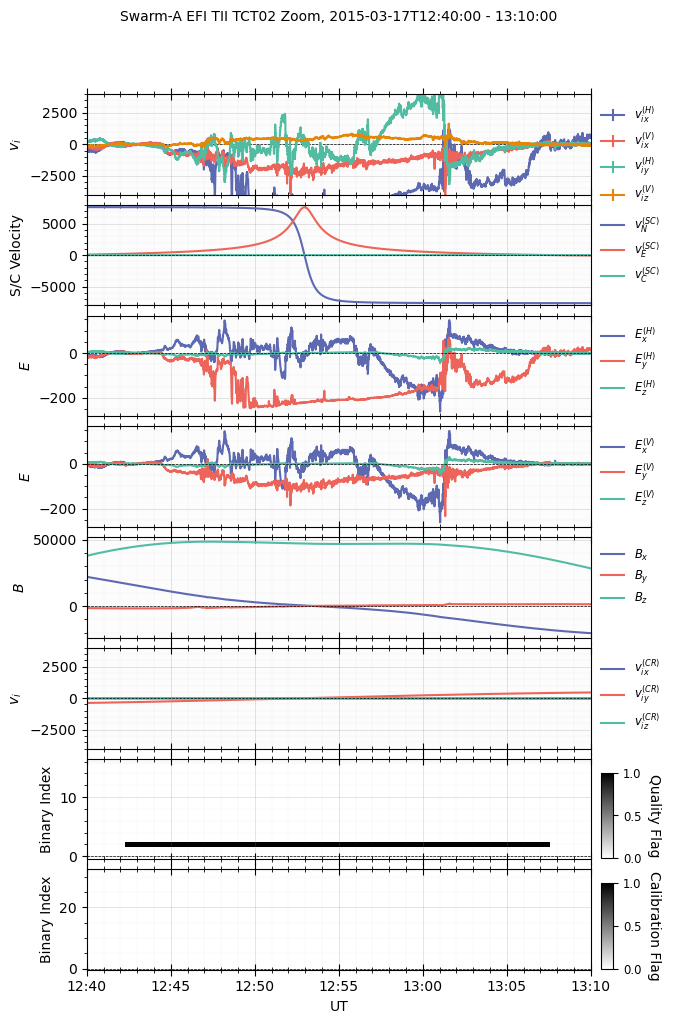

Zoomed-in with a short time span¶
def test_swarm_EFI_TII_TCT02_zoom():
"""Test Swarm EFI TII TCT02 data product
"""
dt_fr = datetime.datetime(2015, 3, 17, 12, 40)
dt_to = datetime.datetime(2015, 3, 17, 13, 10)
db = dashboards.TSDashboard(
dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (8, 12)},
# timeline_extra_labels=['GEO_LAT', 'GEO_LON', 'APEX_LAT', 'APEX_LON', 'APEX_MLT',] # Not applicable for very scattered data points like AEJ_PBS peaks
)
ds = db.dock(datasource_contents=['esa_eo', 'swarm', 'advanced', 'efi_tct02'], sat_id='A', add_APEX=True,)
panel_layouts = [
[ds['v_i_H_x'], ds['v_i_V_x'], ds['v_i_H_y'], ds['v_i_V_z']],
[ds['v_SC_N'], ds['v_SC_E'], ds['v_SC_C']],
[ds['E_H_x'], ds['E_H_y'], ds['E_H_z']],
[ds['E_V_x'], ds['E_V_y'], ds['E_V_z']],
[ds['B_x'], ds['B_y'], ds['B_z']],
[ds['v_i_CR_x'], ds['v_i_CR_y'], ds['v_i_CR_z']],
[ds['QUALITY_FLAG_BIN_AUX'],],
[ds['CALIB_FLAG_BIN_AUX'],],
]
db.set_layout(panel_layouts=panel_layouts)
db.draw()
db.add_title(title='Swarm-{} EFI TII TCT02 Zoom'.format(ds.sat_id), fontsize='medium', append_time=True)
db.save_figure(
file_dir=file_dir_figure,
file_name='example_EFI_TII_TCT02_Swarm-{}_zoom'.format(ds.sat_id),
dpi=100,
append_time=False)
db.show()
test_swarm_EFI_TII_TCT02_zoom()
Create a new figure: Figure(800x1200).
Searching the data product "EFI_TCT02" with the version "latest" on the server...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Advanced/EFI_TII/TCT02/0401/Sat_A/2015/SW_EXPT_EFIA_TCT02_20150317T000000_20150317T235959_0401.cdf')] already exists: skip downloading.

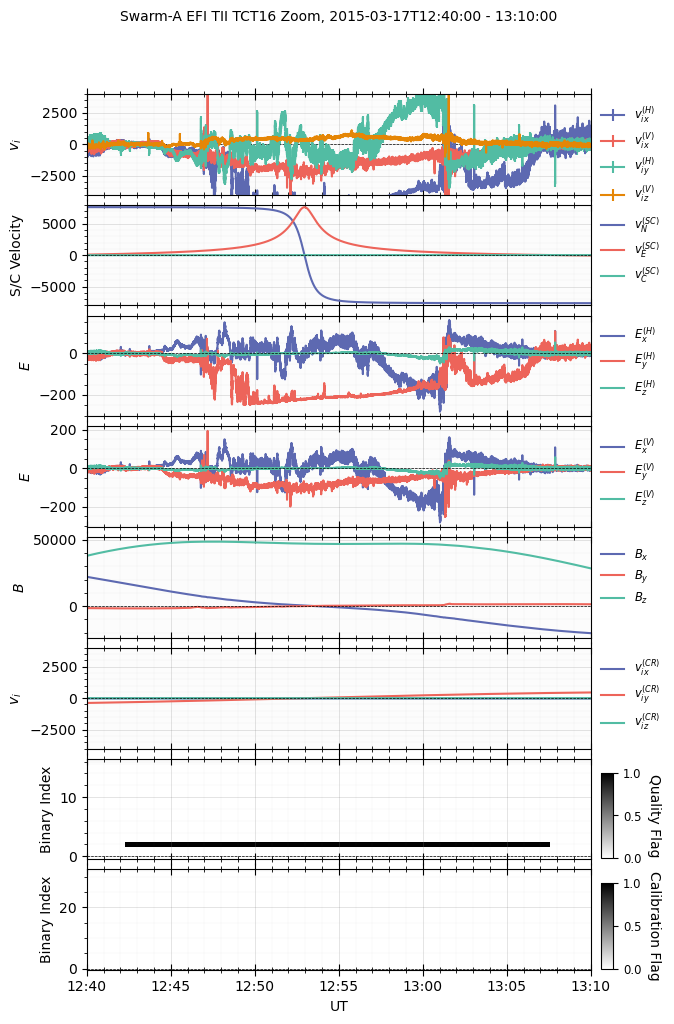

Swarm EFI TII TCT 16 Hz data¶
def test_swarm_EFI_TII_TCT16_zoom():
"""Test Swarm EFI TII TCT16 data product
"""
dt_fr = datetime.datetime(2015, 3, 17, 12, 40)
dt_to = datetime.datetime(2015, 3, 17, 13, 10)
db = dashboards.TSDashboard(
dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (8, 12)},
)
ds = db.dock(datasource_contents=['esa_eo', 'swarm', 'advanced', 'efi_tct16'], sat_id='A', add_APEX=True,)
panel_layouts = [
[ds['v_i_H_x'], ds['v_i_V_x'], ds['v_i_H_y'], ds['v_i_V_z']],
[ds['v_SC_N'], ds['v_SC_E'], ds['v_SC_C']],
[ds['E_H_x'], ds['E_H_y'], ds['E_H_z']],
[ds['E_V_x'], ds['E_V_y'], ds['E_V_z']],
[ds['B_x'], ds['B_y'], ds['B_z']],
[ds['v_i_CR_x'], ds['v_i_CR_y'], ds['v_i_CR_z']],
[ds['QUALITY_FLAG_BIN_AUX'],],
[ds['CALIB_FLAG_BIN_AUX'],],
]
db.set_layout(panel_layouts=panel_layouts)
db.draw()
db.add_title(title='Swarm-{} EFI TII TCT16 Zoom'.format(ds.sat_id), fontsize='medium', append_time=True)
db.save_figure(
file_dir=file_dir_figure,
file_name='example_EFI_TII_TCT16_Swarm-{}_zoom'.format(ds.sat_id),
dpi=100,
append_time=False)
db.show()
test_swarm_EFI_TII_TCT16_zoom()Create a new figure: Figure(800x1200).
Searching the data product "EFI_TCT16" with the version "latest" on the server...
INFO: Indexing the files for the product EFI_TCT16 of the satellite A ...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Advanced/EFI_TII/TCT16/0401/Sat_A/2015/SW_EXPT_EFIA_TCT16_20150317T000000_20150317T235959_0401.cdf')] already exists: skip downloading.
