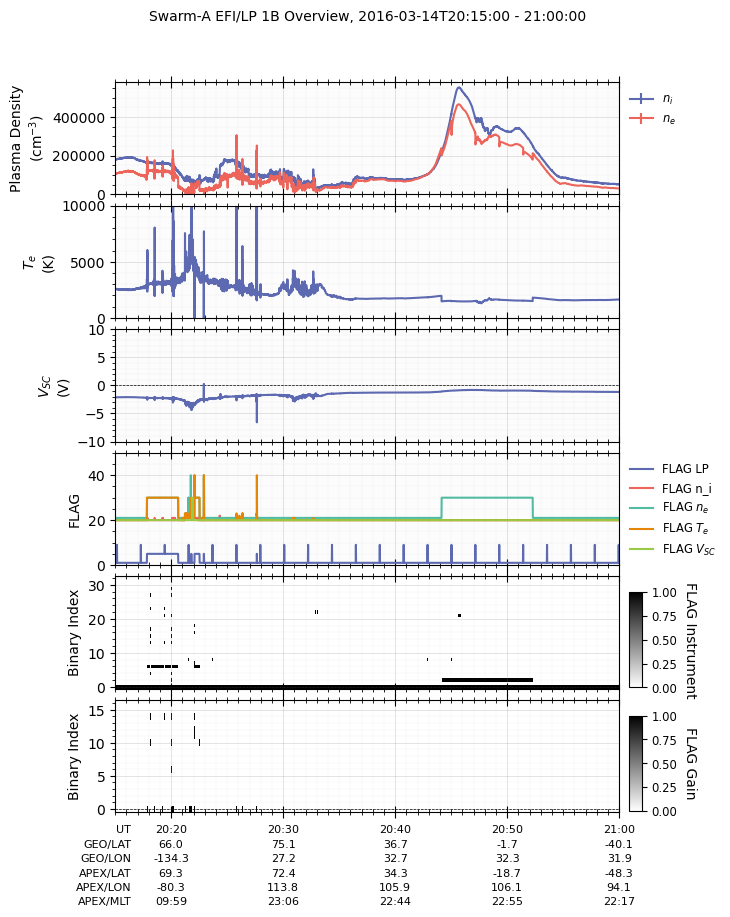

Swarm EFI LP 1B data¶
def test_swarm_EFI_LP_1B_overview():
"""Test Swarm EFI/LP 1B data product
"""
dt_fr = datetime.datetime(2016, 3, 14, 20, 15)
dt_to = datetime.datetime(2016, 3, 14, 21, 0)
db = dashboards.TSDashboard(
dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (8, 10)},
timeline_extra_labels=['GEO_LAT', 'GEO_LON', 'APEX_LAT', 'APEX_LON', 'APEX_MLT'],
)
ds = db.dock(
datasource_contents=['esa_eo', 'swarm', 'l1b', 'efi_lp'],
product_version='latest', # 'latest' (default),
sat_id='A', add_APEX=True)
ds.list_all_variables()
panel_layouts = [
[ds['n_i'], ds['n_e']],
[ds['T_e']],
[ds['V_SC']],
[ds['FLAG_LP'], ds['FLAG_n_i'], ds['FLAG_n_e'], ds['FLAG_T_e'], ds['FLAG_V_SC']],
[ds['FLAG_1_BIN_AUX'],],
[ds['FLAG_2_BIN_AUX'],],
]
# Change some default attrs for better visualization
ds['T_e'].visual.axis[1].lim = [-10, 10000]
db.set_layout(panel_layouts=panel_layouts)
db.draw()
db.add_title(title='Swarm-{} EFI/LP 1B Overview'.format(ds.sat_id), fontsize='medium', append_time=True)
db.show()
test_swarm_EFI_LP_1B_overview()Create a new figure: Figure(800x1000).
Load IGRF coefficients ...
Searching the data product "EFI_LP" with the version "latest" on the server...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Level1b/EFI_LP/0701/Sat_A/2016/SW_OPER_EFIA_LP_1B_20160314T000000_20160314T235959_0701_MDR_EFI_LP.cdf')] already exists: skip downloading.
/opt/anaconda3/envs/Swarm/lib/python3.12/site-packages/numpy/_core/numeric.py:475: RuntimeWarning: invalid value encountered in cast
multiarray.copyto(res, fill_value, casting='unsafe')
Dataset: esa/earthonline | swarm | efi | efi_lp
Printing all of the variables ...
|No. |Variable name |Variable name (Source) |Description |
|--------------------|------------------------------|------------------------------|----------------------------------------------------------------------------------------------------|
|1 |SC_DATETIME |N/A |Time of observation |
|2 |Sync_Status |SyncStatus | |
|3 |SC_GEO_LAT |Latitude |Geographic Latitude |
|4 |SC_GEO_LON |Longitude |Geographic Longitude |
|5 |SC_GEO_r |N/A | |
|6 |v_SC_ITRF |U_orbit |S/C velocity in ITRF |
|7 |n_i |N_ion |Ion density |
|8 |CALIB_n_i |dN_ion |Calibration parameter for n_i, wrt. ISRs |
|9 |n_i_err |N_ion_error | |
|10 |n_e |N_elec |Electron density |
|11 |n_e_err |N_elec_error | |
|12 |T_e |T_elec |Electron temperature |
|13 |T_e_err |T_elec_error | |
|14 |CALIB_T_e |dT_elec |Calibration parameter for T_e, wrt. ISRs |
|15 |V_SC |Vs |S/C potential |
|16 |V_SC_err |Vs_error | |
|17 |FLAG_LP |Flags_LP |Flag of source: 1, 5, 9 |
|18 |FLAG_n_i |Flags_N_ion |Flag of n_i: 10 - 40 |
|19 |FLAG_n_e |Flags_N_elec |Flag of n_e: 10 - 40 |
|20 |FLAG_T_e |Flags_T_elec |Flag of T_e: 10 - 40 |
|21 |FLAG_V_SC |Flags_Vs |Flag of V_SC: 20, 30 |
|22 |FLAG_BITS_1 |Flagbits1 |Binary flag (Instrument) |
|23 |FLAG_BITS_2 |Flagbits2 |Binary flag (Gain) |
|24 |FLAG_1_BIN_AUX |N/A |Binary flag (Instrument) |
|25 |FLAG_2_BIN_AUX |N/A |Binary flag (Gain) |
|26 |FLAG_1_BIN_IND |N/A | |
|27 |FLAG_2_BIN_IND |N/A | |
|28 |Gamma_1 |Gamma1 | |
|29 |Gamma_2 |Gamma2 | |
|30 |SC_APEX_LAT |N/A |APEX Latitude |
|31 |SC_APEX_LON |N/A |APEX Longitude |
|32 |SC_APEX_MLT |N/A |APEX Magnetic Local Time |
|33 |SC_GEO_LST |N/A |Local Solar Time |

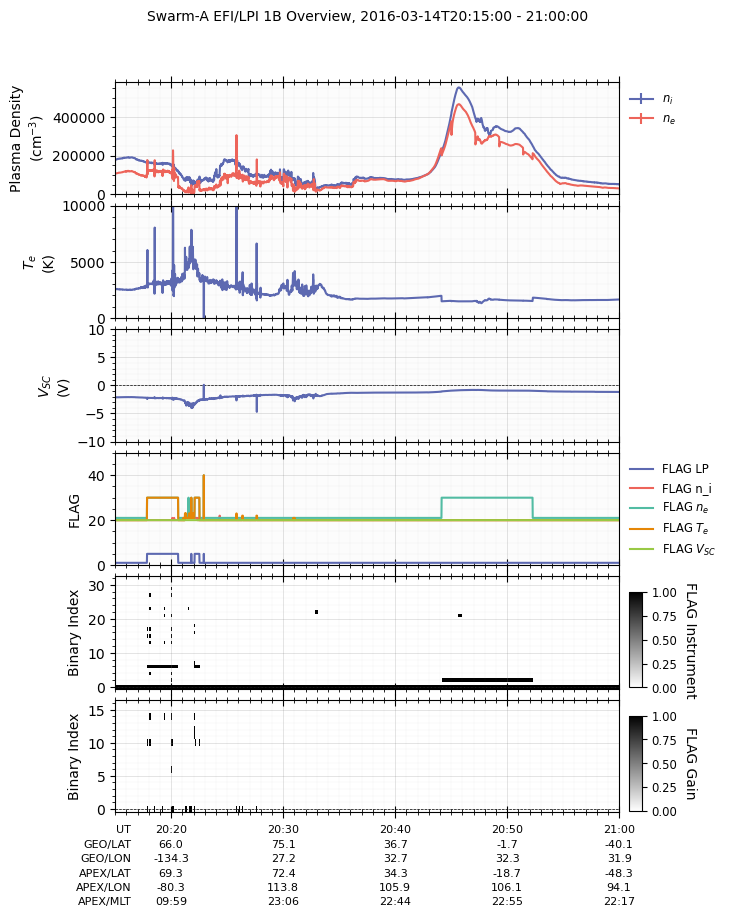

Swarm EFI LPI data¶
def test_swarm_EFI_LPI_1B_overview():
"""Test Swarm EFI/LPI 1B data product
"""
dt_fr = datetime.datetime(2016, 3, 14, 20, 15)
dt_to = datetime.datetime(2016, 3, 14, 21, 0)
db = dashboards.TSDashboard(
dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (8, 10)},
timeline_extra_labels=['GEO_LAT', 'GEO_LON', 'APEX_LAT', 'APEX_LON', 'APEX_MLT'],
)
ds = db.dock(
datasource_contents=['esa_eo', 'swarm', 'l1b', 'efi_lpi'],
product_version='latest', # 'latest' (default),
sat_id='A', add_APEX=True)
panel_layouts = [
[ds['n_i'], ds['n_e']],
[ds['T_e']],
[ds['V_SC']],
[ds['FLAG_LP'], ds['FLAG_n_i'], ds['FLAG_n_e'], ds['FLAG_T_e'], ds['FLAG_V_SC']],
[ds['FLAG_1_BIN_AUX'],],
[ds['FLAG_2_BIN_AUX'],],
]
# Change some default attrs for better visualization
ds['T_e'].visual.axis[1].lim = [-10, 10000]
db.set_layout(panel_layouts=panel_layouts)
db.draw()
db.add_title(title='Swarm-{} EFI/LPI 1B Overview'.format(ds.sat_id), fontsize='medium', append_time=True)
db.show()
test_swarm_EFI_LPI_1B_overview()
Create a new figure: Figure(800x1000).
Searching the data product "EFI_LPI" with the version "latest" on the server...
INFO: Indexing the files for the product EFI_LPI of the satellite A ...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Level1b/EFI_LPI/0701/Sat_A/2016/SW_OPER_EFIALPI_1B_20160314T000000_20160314T235959_0701_MDR_EFILPI.cdf')] already exists: skip downloading.

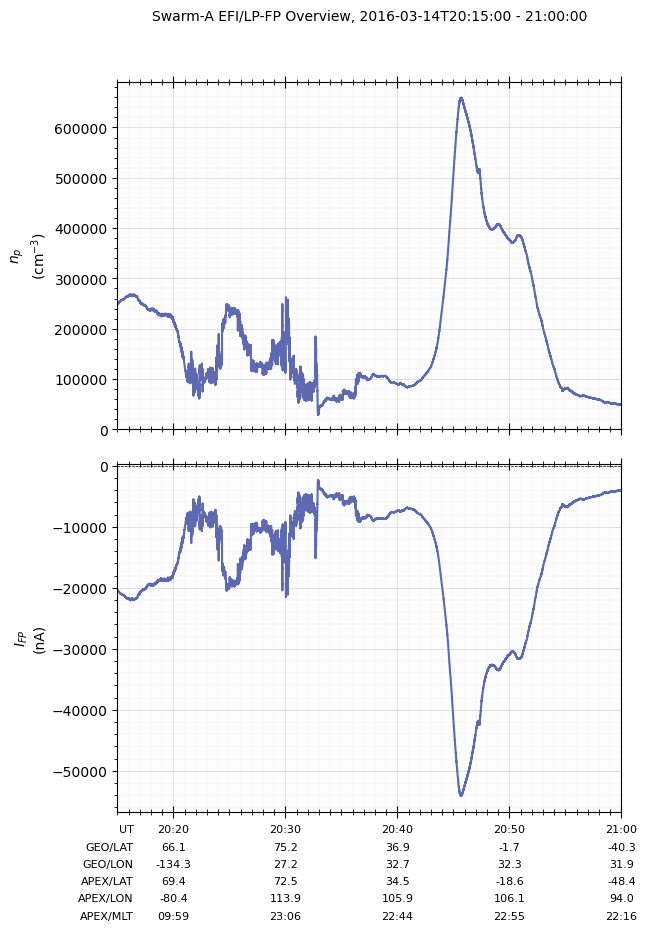

Swarm EFI LP FP data¶
def test_swarm_EFI_LP_FP_overview():
"""Test Swarm EFI/LP-FP data product
"""
dt_fr = datetime.datetime(2016, 3, 14, 20, 15)
dt_to = datetime.datetime(2016, 3, 14, 21, 0)
db = dashboards.TSDashboard(
dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (8, 10)},
timeline_extra_labels=['GEO_LAT', 'GEO_LON', 'APEX_LAT', 'APEX_LON', 'APEX_MLT'],
)
ds = db.dock(
datasource_contents=['esa_eo', 'swarm', 'advanced', 'efi_lp_fp'],
product_version='latest', # 'latest' (default),
sat_id='A', add_APEX=True)
panel_layouts = [
[ds['n_p']],
[ds['I_FP']],
]
db.set_layout(panel_layouts=panel_layouts)
db.draw()
db.add_title(title='Swarm-{} EFI/LP-FP Overview'.format(ds.sat_id), fontsize='medium', append_time=True)
db.show()
test_swarm_EFI_LP_FP_overview()Create a new figure: Figure(800x1000).
Searching the data product "EFI_LP_FP" with the version "latest" on the server...
INFO: Indexing the files for the product EFI_LP_FP of the satellite A ...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Advanced/EFI_LP_FP/0203/Sat_A/2016/SW_EXTD_EFIA_LP_FP_20160314T063806_20160314T235959_0203.cdf')] already exists: skip downloading.

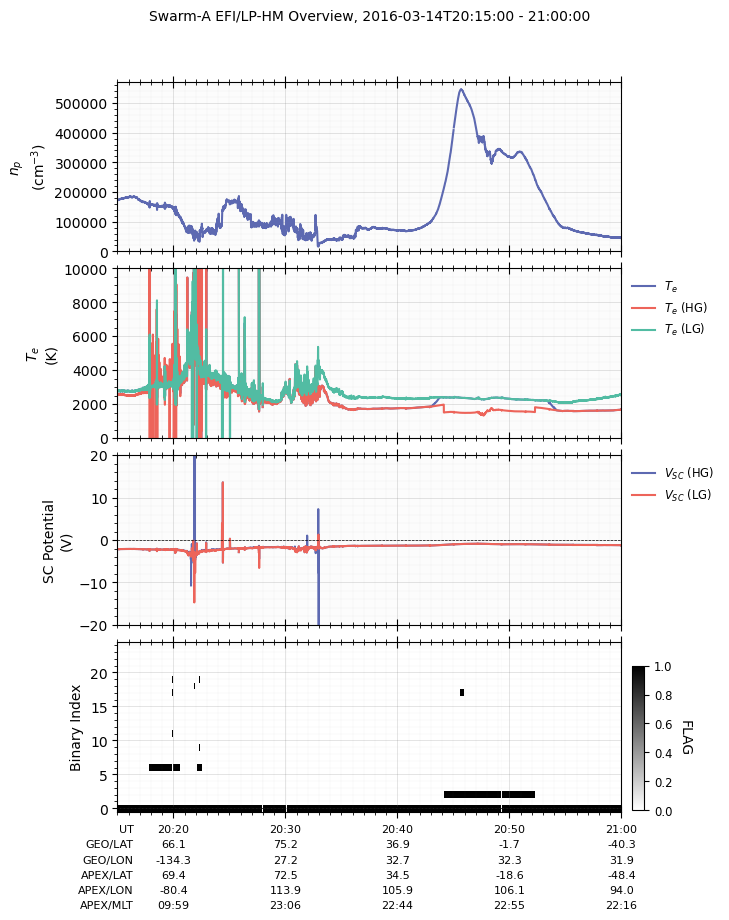

Swarm EFI LP HM data¶
def test_swarm_EFI_LP_HM_overview():
"""Test Swarm EFI/LP-HM data product
"""
dt_fr = datetime.datetime(2016, 3, 14, 20, 15)
dt_to = datetime.datetime(2016, 3, 14, 21, 0)
db = dashboards.TSDashboard(
dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (8, 10)},
timeline_extra_labels=['GEO_LAT', 'GEO_LON', 'APEX_LAT', 'APEX_LON', 'APEX_MLT'],
)
ds = db.dock(
datasource_contents=['esa_eo', 'swarm', 'advanced', 'efi_lp_hm'],
product_version='latest', # 'latest' (default),
sat_id='A', add_APEX=True)
panel_layouts = [
[ds['n_p']],
[ds['T_e'], ds['T_e_HG'], ds['T_e_LG']],
[ds['V_SC_HG'], ds['V_SC_LG']],
[ds['FLAG_BIN_AUX'],],
]
ds['T_e'].visual.axis[1].lim = [-10, 10000]
db.set_layout(panel_layouts=panel_layouts)
db.draw()
db.add_title(title='Swarm-{} EFI/LP-HM Overview'.format(ds.sat_id), fontsize='medium', append_time=True)
db.show()
test_swarm_EFI_LP_HM_overview()
Create a new figure: Figure(800x1000).
Searching the data product "EFI_LP_HM" with the version "latest" on the server...
INFO: Indexing the files for the product EFI_LP_HM of the satellite A ...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Advanced/EFI_LP_HM/0102/Sat_A/2016/SW_EXTD_EFIA_LP_HM_20160314T000000_20160314T235959_0102.cdf')] already exists: skip downloading.

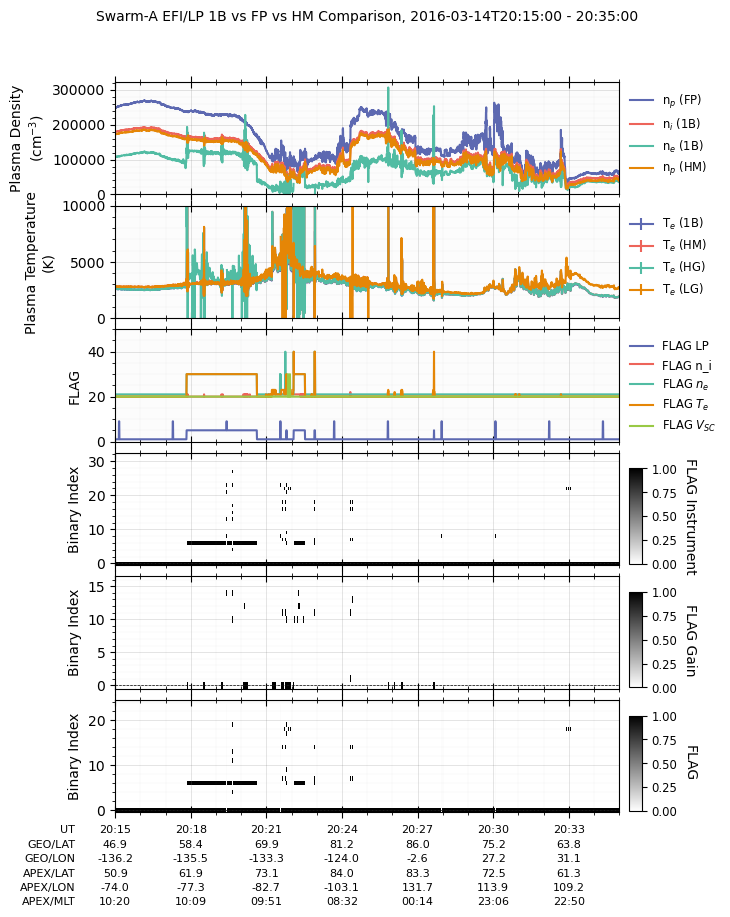

A combination of different EFI data products¶
def test_swarm_compare_EFI_LP_FP_HM():
"""Test Swarm EFI/LP-FP vs. EFI/LP-HM data products
"""
dt_fr = datetime.datetime(2016, 3, 14, 20, 15)
dt_to = datetime.datetime(2016, 3, 14, 20, 35)
db = dashboards.TSDashboard(
dt_fr=dt_fr, dt_to=dt_to, figure_config={'figsize': (8, 10)},
timeline_extra_labels=['GEO_LAT', 'GEO_LON', 'APEX_LAT', 'APEX_LON', 'APEX_MLT'],
)
ds_lp_fp = db.dock(
datasource_contents=['esa_eo', 'swarm', 'advanced', 'efi_lp_fp'],
product_version='latest', # 'latest' (default),
sat_id='A', add_APEX=True)
ds_lp_1b = db.dock(
datasource_contents=['esa_eo', 'swarm', 'l1b', 'efi_lp'],
product_version='latest', # 'latest' (default),
sat_id='A', add_APEX=True)
ds_lp_hm = db.dock(
datasource_contents=['esa_eo', 'swarm', 'advanced', 'efi_lp_hm'],
product_version='latest', # 'latest' (default),
sat_id='A', add_APEX=True)
panel_layouts = [
[ds_lp_fp['n_p'], ds_lp_1b['n_i'], ds_lp_1b['n_e'], ds_lp_hm['n_p']],
[ds_lp_1b['T_e'], ds_lp_hm['T_e'], ds_lp_hm['T_e_HG'], ds_lp_hm['T_e_LG']],
[ds_lp_1b['FLAG_LP'], ds_lp_1b['FLAG_n_i'], ds_lp_1b['FLAG_n_e'], ds_lp_1b['FLAG_T_e'], ds_lp_1b['FLAG_V_SC']],
[ds_lp_1b['FLAG_1_BIN_AUX'],],
[ds_lp_1b['FLAG_2_BIN_AUX'],],
[ds_lp_hm['FLAG_BIN_AUX'],],
]
ds_lp_1b['n_i'].visual.axis[2].label = r"n$_i$ (1B)"
ds_lp_1b['n_e'].visual.axis[2].label = r"n$_e$ (1B)"
ds_lp_1b['T_e'].visual.axis[2].label = r"T$_e$ (1B)"
ds_lp_fp['n_p'].visual.axis[2].label = r"n$_p$ (FP)"
ds_lp_hm['n_p'].visual.axis[2].label = r"n$_p$ (HM)"
ds_lp_hm['T_e'].visual.axis[2].label = r"T$_e$ (HM)"
ds_lp_hm['T_e_HG'].visual.axis[2].label = r"T$_e$ (HG)"
ds_lp_hm['T_e_LG'].visual.axis[2].label = r"T$_e$ (LG)"
ds_lp_1b['T_e'].visual.axis[1].lim = [-10, 10000]
db.set_layout(panel_layouts=panel_layouts)
db.draw()
db.add_title(title='Swarm-{} EFI/LP 1B vs FP vs HM Comparison'.format(ds_lp_fp.sat_id), fontsize='medium', append_time=True)
db.show()
test_swarm_compare_EFI_LP_FP_HM()
Create a new figure: Figure(800x1000).
Searching the data product "EFI_LP_FP" with the version "latest" on the server...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Advanced/EFI_LP_FP/0203/Sat_A/2016/SW_EXTD_EFIA_LP_FP_20160314T063806_20160314T235959_0203.cdf')] already exists: skip downloading.
Searching the data product "EFI_LP" with the version "latest" on the server...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Level1b/EFI_LP/0701/Sat_A/2016/SW_OPER_EFIA_LP_1B_20160314T000000_20160314T235959_0701_MDR_EFI_LP.cdf')] already exists: skip downloading.
Searching the data product "EFI_LP_HM" with the version "latest" on the server...
The file [PosixPath('/data/afys-ionosphere/data/ESA/SWARM/Advanced/EFI_LP_HM/0102/Sat_A/2016/SW_EXTD_EFIA_LP_HM_20160314T000000_20160314T235959_0102.cdf')] already exists: skip downloading.
